GRAIL - Estimating the spacecraft trajectory from ODF Doppler measurements#
Objectives#
Within this example, we estimate GRAIL’s trajectory using ODF Doppler measurements as the data source. To achieve a high-fidelity estimation suitable for research analysis, the script follows this methodology:
Data Loading & Pre-processing: Loading raw ODF files, filtering for the specific arc, and compressing Doppler data to 60s intervals to optimize computational load.
Environment Setup: Constructing a precise lunar environment, incorporating the
gggrx1200gravity field (truncated to order 500) and solid body tides from the Earth and Sun.Dynamical Modelling: Configuring the propagation with high-precision accelerations, including panelled radiation pressure models for both Solar and Lunar sources (thermal emission and albedo).
Estimation: Performing a least-squares fit to estimate the spacecraft initial state, radiation pressure coefficients, and maneuvers.

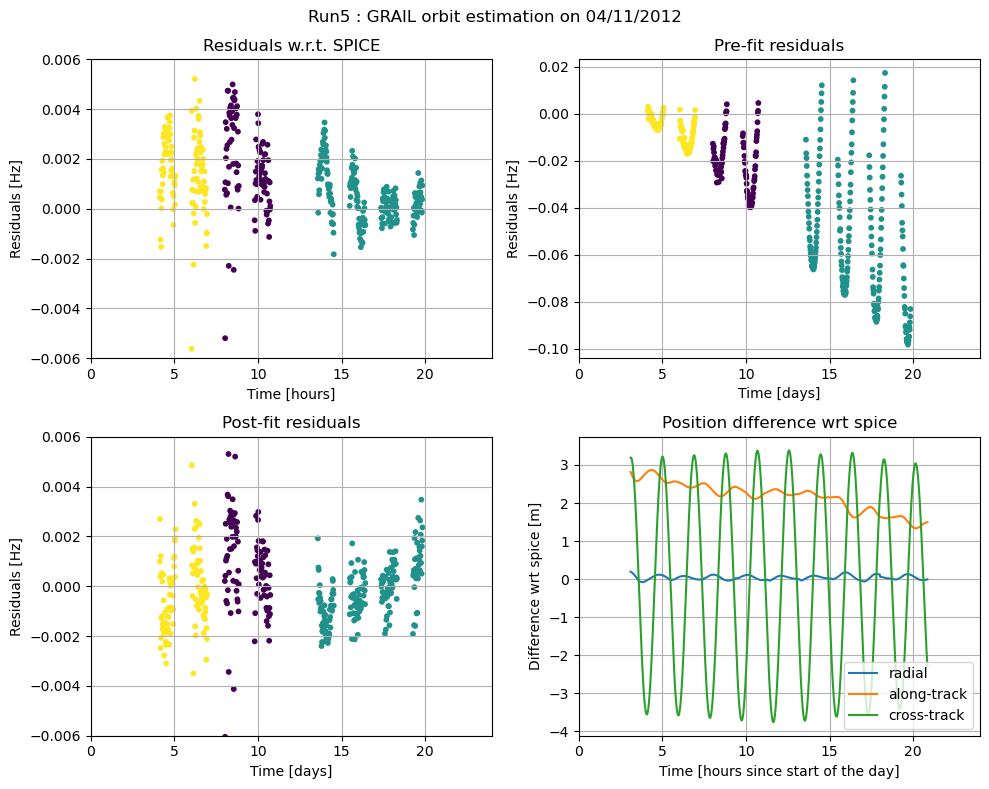

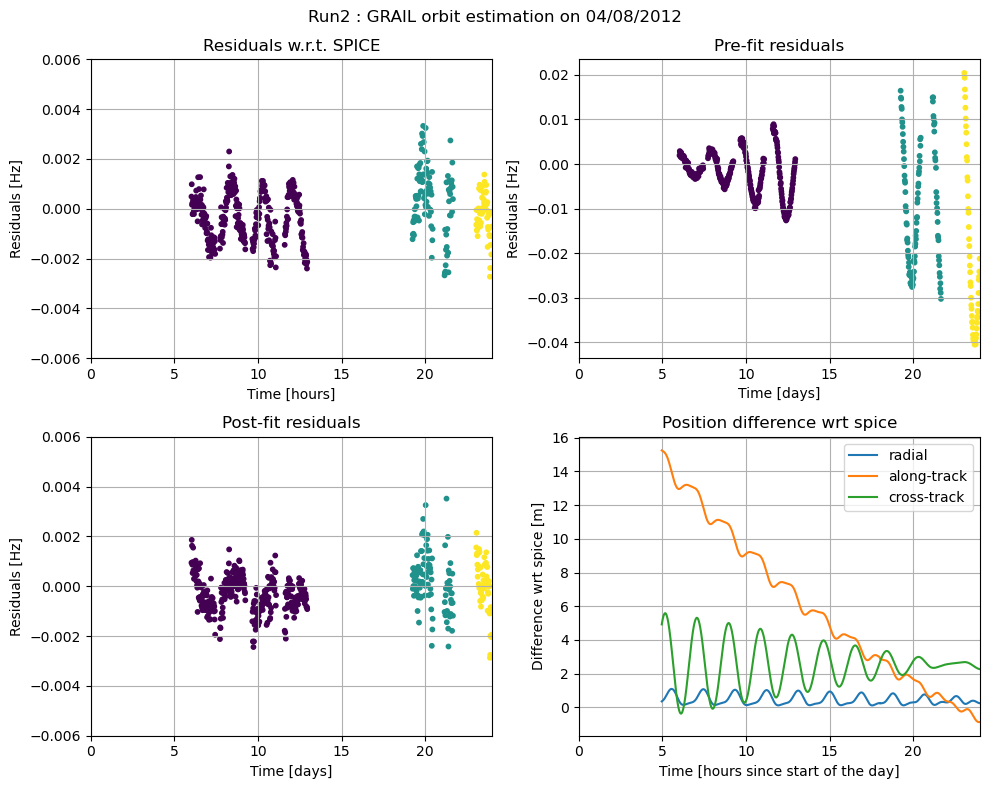

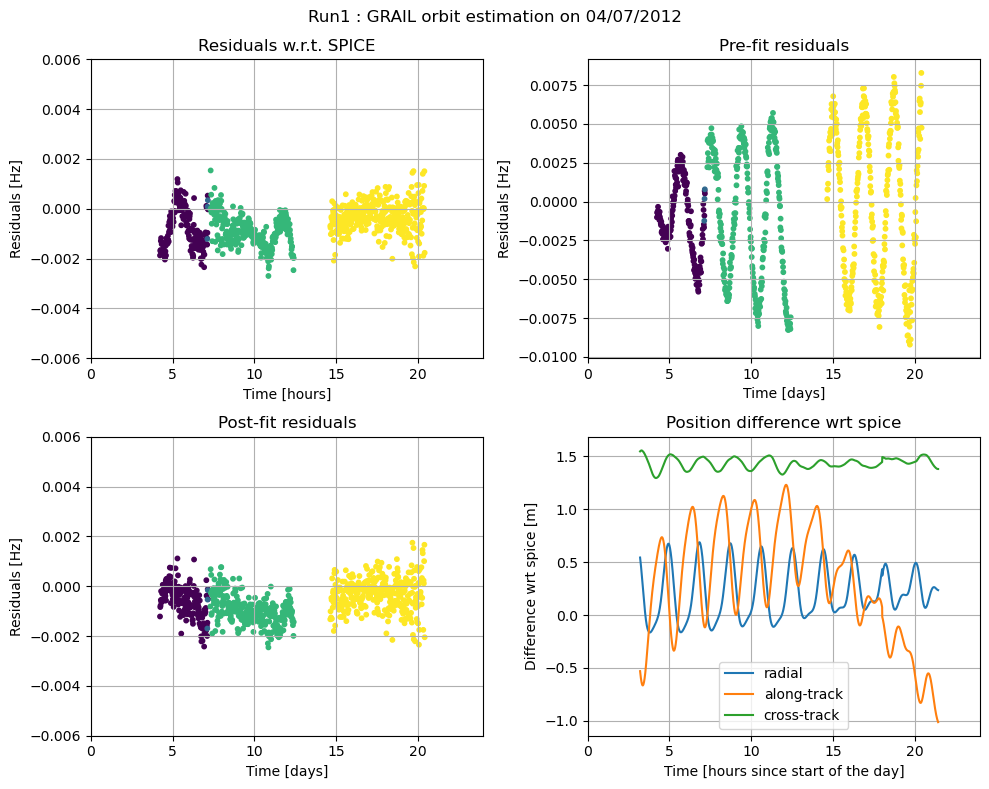

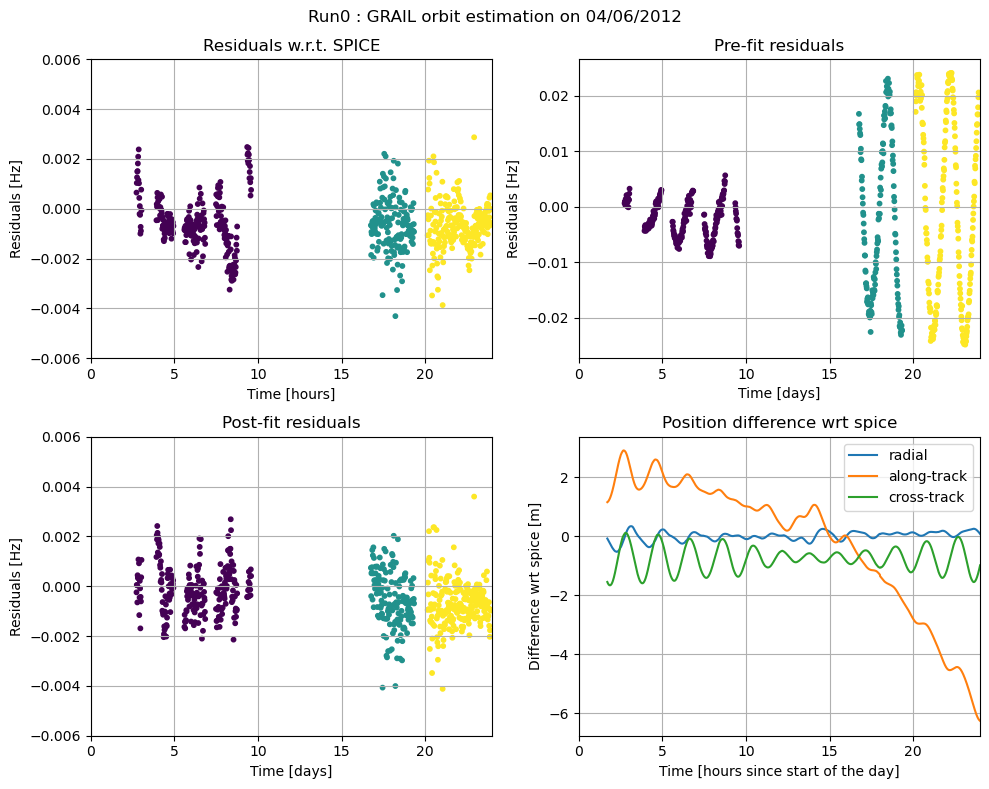

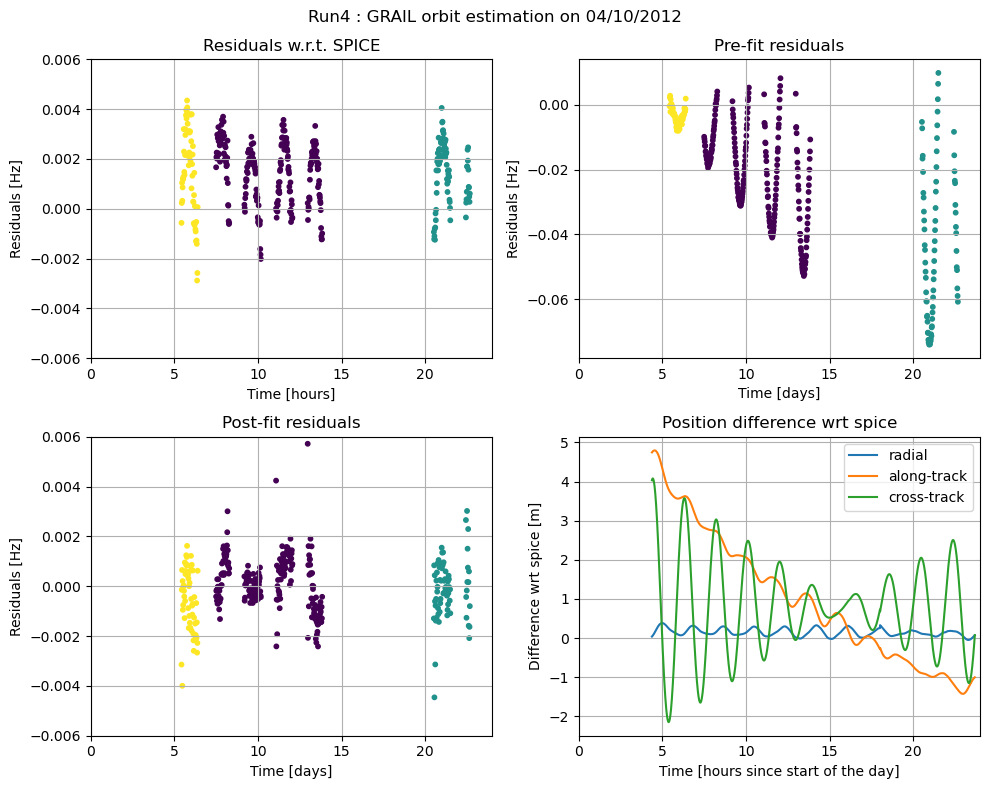

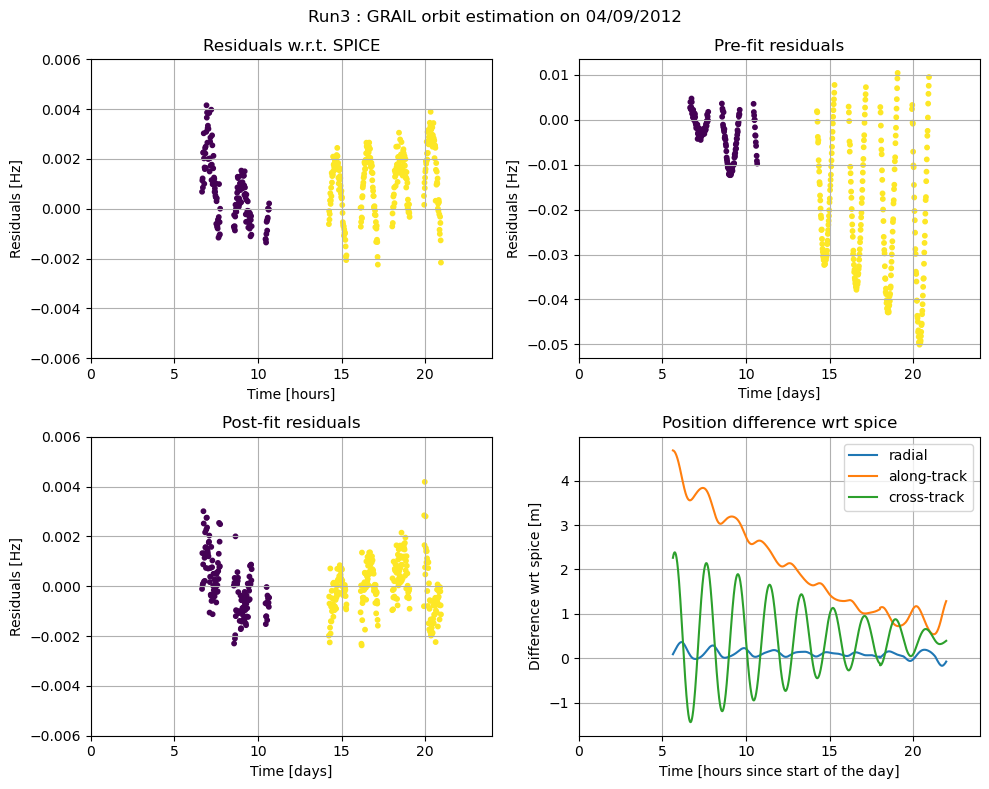

Validation: Computing pre- and post-fit residuals and analyzing the trajectory difference w.r.t. the SPICE reference ephemeris.
Important Remarks#
Before running this script, please make sure you are using Tudatpy v1.0 or above.
Running the example automatically triggers the download of all required kernels and data files if they are not found locally (trajectory and orientation kernels for the MRO spacecraft, atmospheric corrections files, ODF files containing the Doppler measurements, etc.). Note that this step needs only be performed once, since the script checks whether each relevant file is already present locally and only proceeds to the download if it is not.
This example performs 7 parallel orbit estimations (over 7 different days), which can slow down your machine and take quite some time (~ 20-30 minutes)
[1]:
# Load required standard modules
import multiprocessing as mp
import numpy as np
from matplotlib import pyplot as plt
import os
from datetime import datetime
# Load required tudatpy modules
from tudatpy.data import grail_mass_level_0_file_reader
from tudatpy.data import grail_antenna_file_reader
from tudatpy.interface import spice
from tudatpy.math import interpolators
from tudatpy.astro import time_representation
from tudatpy import util
from tudatpy.dynamics import environment_setup
from tudatpy.dynamics.environment_setup import radiation_pressure
from tudatpy.dynamics import propagation
from tudatpy.dynamics import propagation_setup
from tudatpy.dynamics import parameters, parameters_setup
from tudatpy import estimation
from tudatpy.estimation import estimation_analysis
from tudatpy.estimation import observable_models_setup
from tudatpy.estimation import observations, observations_setup
# Import GRAIL examples functions
from grail_examples_functions import (
get_grail_files,
get_grail_panel_geometry,
get_rsw_state_difference,
)
The Main Function#
We pack the main estimation run functionality into the run_odf_estimation function. The “inputs” variable used as input argument is a list with 14 entries:
the index of the current run (the run_odf_estimation function being run in parallel on several cores in this example)
the date for the day-long arc under consideration
the list of ODF files to be loaded to cover the above-mentioned time interval
the clock file to be loaded
the list of orientation kernels to be loaded
the list of tropospheric correction files to be loaded
the list of ionospheric correction files to be loaded
the GRAIL manoeuvres file to be loaded
the antennas switch files to be loaded
the list of GRAIL trajectory files to be loaded
the GRAIL reference frames file to be loaded
the lunar orientation kernel to be loaded
the lunar reference frame kernel to be loaded
output files directory
[2]:
def run_odf_estimation(inputs):
# Unpack various input arguments
input_index = inputs[0]
# Convert the datetime object defining the day of interest to a Tudat Time variable.
date = time_representation.DateTime.from_python_datetime(inputs[1]).to_epoch()
# Retrieve lists of relevant kernels and input files to load (ODF files, clock and orientation kernels for GRAIL,
# tropospheric and ionospheric corrections, manoeuvres file, antennas switch files, GRAIL trajectory files, GRAIL
# reference frames file, lunar orientation kernels, and lunar reference frame kernel)
odf_files = inputs[2]
clock_file = inputs[3]
grail_orientation_files = inputs[4]
tro_files = inputs[5]
ion_files = inputs[6]
manoeuvre_file = inputs[7]
antennas_switch_files = inputs[8]
trajectory_files = inputs[9]
grail_ref_frames_file = inputs[10]
lunar_orientation_file = inputs[11]
lunar_ref_frame_file = inputs[12]
output_folder = inputs[13]
# Redirect the outputs of this run to a file names grail_odf_estimation_output_x.dat, with x the run index
with util.redirect_std(
output_folder + "grail_odf_estimation_output_" + str(input_index) + ".dat",
True,
True,
):
print("input_index", input_index)
filename_suffix = str(input_index)
### ------------------------------------------------------------------------------------------
### LOAD ALL REQUESTED KERNELS AND FILES
### ------------------------------------------------------------------------------------------
# Load standard spice kernels
spice.load_standard_kernels()
# Load specific Moon kernels
spice.load_kernel(lunar_ref_frame_file)
spice.load_kernel(lunar_orientation_file)
# Load GRAIL frame definition file (useful for spacecraft-fixed frames definition)
spice.load_kernel(grail_ref_frames_file)
# Load GRAIL orientation kernels (over the entire relevant time period).
for orientation_file in grail_orientation_files:
spice.load_kernel(orientation_file)
# Load GRAIL clock file
spice.load_kernel(clock_file)
# Load GRAIL trajectory kernel
for trajectory_file in trajectory_files:
spice.load_kernel(trajectory_file)
### ------------------------------------------------------------------------------------------
### LOAD ODF OBSERVATIONS AND PERFORM PRE-PROCESSING STEPS
### ------------------------------------------------------------------------------------------
if not odf_files:
odf_files = ["grail_kernels/gralugf2012_097_0235smmmv1.odf"]
# Load ODF files
multi_odf_file_contents = (
observations_setup.observations_wrapper.process_odf_data_multiple_files(
odf_files, "GRAIL-A", True
)
)
# Create observation collection from ODF files, only retaining Doppler observations. An observation collection contains
# multiple "observation sets". Within a given observation set, the observables are of the same type (here Doppler) and
# defined from the same link ends. However, within the "global" observation collection, multiple observation sets can
# typically be found for a given observable type and link ends, but they will cover different observation time intervals.
# When loading ODF data, a separate observation set is created for each ODF file (which means the time intervals of each
# set match those of the corresponding ODF file).
original_odf_observations = observations_setup.observations_wrapper.create_odf_observed_observation_collection(
multi_odf_file_contents,
[observable_models_setup.model_settings.dsn_n_way_averaged_doppler_type],
[
time_representation.Time(0, np.nan),
time_representation.Time(0, np.nan),
],
)
# Filter all ODF observations that exceed the arc duration of one day
day_arc_filter = observations.observations_processing.observation_filter(
observations.observations_processing.ObservationFilterType.time_bounds_filtering,
date,
date + 86400.0,
use_opposite_condition=True,
)
original_odf_observations.filter_observations(day_arc_filter)
original_odf_observations.remove_empty_observation_sets()
# Retrieve time bounds of the ODF observations. A time buffer of 1h is subtracted/added to the observation
# start and end times. This is necessary to ensure that the simulation environment covers the full time span of the
# loaded ODF observations, without interpolation errors at the arc boundaries.
observation_time_limits = original_odf_observations.time_bounds_time_object
obs_start_time = observation_time_limits[0] - 3600.0
obs_end_time = observation_time_limits[1] + 3600.0
print(
"Original observations: ",
original_odf_observations.concatenated_observations.size,
)
original_odf_observations.print_observation_sets_start_and_size()
# Compress Doppler observations from 1.0 s integration time to 60.0 s
compressed_observations = observations_setup.observations_wrapper.create_compressed_doppler_collection(
original_odf_observations, 60, 10
)
print(
"Compressed observations: ",
compressed_observations.concatenated_observations.size,
)
compressed_observations.print_observation_sets_start_and_size()
### ------------------------------------------------------------------------------------------
### CREATE DYNAMICAL ENVIRONMENT
### ------------------------------------------------------------------------------------------
# Create default body settings for celestial bodies
bodies_to_create = [
"Earth",
"Sun",
"Mercury",
"Venus",
"Mars",
"Jupiter",
"Saturn",
"Moon",
]
global_frame_origin = "SSB"
global_frame_orientation = "J2000"
body_settings = environment_setup.get_default_body_settings_time_limited(
bodies_to_create,
obs_start_time.to_float(),
obs_end_time.to_float(),
global_frame_origin,
global_frame_orientation,
)
# Modify default shape, rotation, and gravity field settings for the Earth
body_settings.get("Earth").shape_settings = (
environment_setup.shape.oblate_spherical_spice()
)
body_settings.get("Earth").rotation_model_settings = (
environment_setup.rotation_model.gcrs_to_itrs(
environment_setup.rotation_model.iau_2006,
global_frame_orientation,
interpolators.interpolator_generation_settings(
interpolators.cubic_spline_interpolation(),
obs_start_time.to_float(),
obs_end_time.to_float(),
3600.0,
),
interpolators.interpolator_generation_settings(
interpolators.cubic_spline_interpolation(),
obs_start_time.to_float(),
obs_end_time.to_float(),
3600.0,
),
interpolators.interpolator_generation_settings(
interpolators.cubic_spline_interpolation(),
obs_start_time.to_float(),
obs_end_time.to_float(),
60.0,
),
)
)
body_settings.get("Earth").gravity_field_settings.associated_reference_frame = (
"ITRS"
)
# Set up DSN ground stations
body_settings.get("Earth").ground_station_settings = (
environment_setup.ground_station.dsn_stations()
)
# Modify default rotation and gravity field settings for the Moon
body_settings.get("Moon").rotation_model_settings = (
environment_setup.rotation_model.spice(
global_frame_orientation, "MOON_PA_DE440", "MOON_PA_DE440"
)
)
body_settings.get("Moon").gravity_field_settings = (
environment_setup.gravity_field.predefined_spherical_harmonic(
environment_setup.gravity_field.gggrx1200, 500
)
)
body_settings.get("Moon").gravity_field_settings.associated_reference_frame = (
"MOON_PA_DE440"
)
# Define gravity field variations for the tides on the Moon
moon_gravity_field_variations = list()
moon_gravity_field_variations.append(
environment_setup.gravity_field_variation.solid_body_tide(
"Earth", 0.02405, 2
)
)
moon_gravity_field_variations.append(
environment_setup.gravity_field_variation.solid_body_tide("Sun", 0.02405, 2)
)
body_settings.get("Moon").gravity_field_variation_settings = (
moon_gravity_field_variations
)
body_settings.get("Moon").ephemeris_settings.frame_origin = "Earth"
# Add Moon radiation properties
moon_surface_radiosity_models = [
radiation_pressure.thermal_emission_angle_based_radiosity(
95.0, 385.0, 0.95, "Sun"
),
radiation_pressure.variable_albedo_surface_radiosity(
radiation_pressure.predefined_spherical_harmonic_surface_property_distribution(
radiation_pressure.albedo_dlam1
),
"Sun",
),
]
body_settings.get("Moon").radiation_source_settings = (
radiation_pressure.panelled_extended_radiation_source(
moon_surface_radiosity_models, [6, 12]
)
)
# Create empty settings for the GRAIL spacecraft
spacecraft_name = "GRAIL-A"
spacecraft_central_body = "Moon"
body_settings.add_empty_settings(spacecraft_name)
body_settings.get(spacecraft_name).constant_mass = 221.69
# Define translational ephemeris from SPICE
body_settings.get(spacecraft_name).ephemeris_settings = (
environment_setup.ephemeris.interpolated_spice(
obs_start_time.to_float(),
obs_end_time.to_float(),
10.0,
spacecraft_central_body,
global_frame_orientation,
)
)
# Define rotational ephemeris from SPICE
body_settings.get(spacecraft_name).rotation_model_settings = (
environment_setup.rotation_model.spice(
global_frame_orientation, spacecraft_name + "_SPACECRAFT", ""
)
)
# Define GRAIL panel geometry, which will be used for the panel radiation pressure model
body_settings.get(spacecraft_name).vehicle_shape_settings = (
get_grail_panel_geometry()
)
# Create environment
bodies = environment_setup.create_system_of_bodies(body_settings)
# Add radiation pressure target models for GRAIL (cannonball model for the solar radiation pressure,
# and complete panel model for the radiation pressure from the Moon)
occulting_bodies = dict()
occulting_bodies["Sun"] = ["Earth"]
pixel_source = {"Sun": 0, "Moon": 0} # No self-shadowing
environment_setup.add_radiation_pressure_target_model(
bodies,
spacecraft_name,
radiation_pressure.panelled_radiation_target(
occulting_bodies, pixel_source
),
)
# Update bodies based on ODF file. This step is necessary to set the antenna transmission frequencies for the GRAIL spacecraft
observations_setup.observations_wrapper.set_odf_information_in_bodies(
multi_odf_file_contents, bodies
)
### ------------------------------------------------------------------------------------------
### SET ANTENNA AS REFERENCE POINT FOR DOPPLER OBSERVATIONS
### ------------------------------------------------------------------------------------------
# Load GRAIL's antenna switch files. For each day, the corresponding file contains the position history of the antenna used for
# radio tracking. As such, they keep track of all switches between the two GRAIL antennas that might have occurred during that
# day. The GRAIL's antenna positions are provided in the spacecraft-fixed frame.
antenna_switch_times = []
antenna_switch_positions = []
for file in antennas_switch_files:
antenna_switch_times += grail_antenna_file_reader(file)[0]
antenna_switch_positions += grail_antenna_file_reader(file)[1]
# Reconstruct dictionary containing the antenna switch history (including the GRAIL-fixed position of the relevant antenna at
# initial and final times)
antenna_switch_history = dict()
antenna_switch_history[obs_start_time.to_float()] = np.array(
antenna_switch_positions[0:3]
)
for k in range(len(antenna_switch_times)):
antenna_switch_history[antenna_switch_times[k]] = np.array(
antenna_switch_positions[k * 3 : (k + 1) * 3]
)
antenna_switch_history[obs_end_time.to_float()] = np.array(
antenna_switch_positions[-3:]
)
# Set GRAIL's reference point position to follow the antenna switch history (the antennas' positions should be provided in the
# spacecraft-fixed frame)
compressed_observations.set_reference_points(
bodies,
antenna_switch_history,
spacecraft_name,
observable_models_setup.links.LinkEndType.reflector1,
)
### ------------------------------------------------------------------------------------------
### RETRIEVE GRAIL MANOEUVRES EPOCHS
### ------------------------------------------------------------------------------------------
# Load the times at which the spacecraft underwent a manoeuvre from GRAIL's manoeuvres file
manoeuvres_times = grail_mass_level_0_file_reader(manoeuvre_file)
# Store the manoeuvres epochs if they occur within the time interval under consideration
relevant_manoeuvres = []
for manoeuvre_time in manoeuvres_times:
if (
manoeuvre_time >= obs_start_time.to_float()
and manoeuvre_time <= obs_end_time.to_float()
):
relevant_manoeuvres.append(manoeuvre_time)
# Save list of manoeuvre epochs occurring within the time interval under consideration
np.savetxt(
output_folder + "relevant_manoeuvres_" + filename_suffix + ".dat",
relevant_manoeuvres,
delimiter=",",
)
### ------------------------------------------------------------------------------------------
### DEFINE PROPAGATION SETTINGS
### ------------------------------------------------------------------------------------------
# Define list of accelerations acting on GRAIL
accelerations_settings_spacecraft = dict(
Sun=[
propagation_setup.acceleration.radiation_pressure(
environment_setup.radiation_pressure.paneled_target
),
propagation_setup.acceleration.point_mass_gravity(),
],
Earth=[propagation_setup.acceleration.point_mass_gravity()],
Moon=[
propagation_setup.acceleration.spherical_harmonic_gravity(256, 256),
propagation_setup.acceleration.radiation_pressure(
environment_setup.radiation_pressure.paneled_target
),
propagation_setup.acceleration.empirical(),
],
Mars=[propagation_setup.acceleration.point_mass_gravity()],
Venus=[propagation_setup.acceleration.point_mass_gravity()],
Jupiter=[propagation_setup.acceleration.point_mass_gravity()],
Saturn=[propagation_setup.acceleration.point_mass_gravity()],
)
# Add manoeuvres if necessary
if len(relevant_manoeuvres) > 0:
accelerations_settings_spacecraft[spacecraft_name] = [
propagation_setup.acceleration.quasi_impulsive_shots_acceleration(
relevant_manoeuvres, [np.zeros((3, 1))], 3600.0, 60.0
)
]
# Create accelerations settings dictionary
acceleration_settings = {spacecraft_name: accelerations_settings_spacecraft}
# Create acceleration models from settings
bodies_to_propagate = [spacecraft_name]
central_bodies = [spacecraft_central_body]
acceleration_models = propagation_setup.create_acceleration_models(
bodies, acceleration_settings, bodies_to_propagate, central_bodies
)
# Define integrator settings
integration_step = 30.0
integrator_settings = propagation_setup.integrator.runge_kutta_fixed_step_size(
time_representation.Time(0, integration_step),
propagation_setup.integrator.rkf_78,
)
# Retrieve GRAIL initial state from SPICE
initial_state = propagation.get_state_of_bodies(
bodies_to_propagate, central_bodies, bodies, obs_start_time
)
# Define propagator settings
propagator_settings = propagation_setup.propagator.translational(
central_bodies,
acceleration_models,
bodies_to_propagate,
initial_state,
obs_start_time,
integrator_settings,
propagation_setup.propagator.time_termination(obs_end_time.to_float()),
)
propagator_settings.print_settings.results_print_frequency_in_steps = (
3600.0 / integration_step
)
### ------------------------------------------------------------------------------------------
### DEFINE SETTINGS TO SIMULATE OBSERVATIONS AND COMPUTE RESIDUALS
### ------------------------------------------------------------------------------------------
# Create light-time corrections list
light_time_correction_list = list()
light_time_correction_list.append(
observable_models_setup.light_time_corrections.first_order_relativistic_light_time_correction(
["Sun"]
)
)
# Add tropospheric correction
light_time_correction_list.append(
observable_models_setup.light_time_corrections.dsn_tabulated_tropospheric_light_time_correction(
tro_files
)
)
# Add ionospheric correction
spacecraft_name_per_id = dict()
spacecraft_name_per_id[177] = "GRAIL-A"
light_time_correction_list.append(
observable_models_setup.light_time_corrections.dsn_tabulated_ionospheric_light_time_correction(
ion_files, spacecraft_name_per_id
)
)
# Create observation model settings for the Doppler observables. This first implies creating the link ends defining all relevant
# tracking links between various ground stations and the MRO spacecraft. The list of light-time corrections defined above is then
# added to each of these link ends.
doppler_link_ends = compressed_observations.link_definitions_per_observable[
estimation.observable_models_setup.model_settings.dsn_n_way_averaged_doppler_type
]
observation_model_settings = list()
for current_link_definition in doppler_link_ends:
observation_model_settings.append(
observable_models_setup.model_settings.dsn_n_way_doppler_averaged(
current_link_definition, light_time_correction_list
)
)
# Create observation simulators
observation_simulators = observations_setup.observations_simulation_settings.create_observation_simulators(
observation_model_settings, bodies
)
# Compute and set residuals in the compressed observation collection
estimation.observations.compute_residuals_and_dependent_variables(
compressed_observations, observation_simulators, bodies
)
# Filter residual outliers
compressed_observations.filter_observations(
estimation.observations.observations_processing.observation_filter(
estimation.observations.observations_processing.ObservationFilterType.residual_filtering,
0.1,
)
)
# Save residuals as directly computed w.r.t. the reference SPICE trajectory for GRAIL, along with the
# observation times and link ends IDs.
np.savetxt(
output_folder + "residuals_wrt_spice_" + filename_suffix + ".dat",
compressed_observations.get_concatenated_residuals(),
delimiter=",",
)
np.savetxt(
output_folder + "observation_times_" + filename_suffix + ".dat",
compressed_observations.concatenated_times,
delimiter=",",
)
np.savetxt(
output_folder + "link_end_ids_" + filename_suffix + ".dat",
compressed_observations.concatenated_link_definition_ids,
delimiter=",",
)
linkEndsDict = compressed_observations.link_definition_ids
link_ends_ids = compressed_observations.concatenated_link_definition_ids
link_ends_names = [
linkEndsDict[linkId][
observable_models_setup.links.LinkEndType.transmitter
].reference_point
+ " - "
+ linkEndsDict[linkId][
observable_models_setup.links.LinkEndType.receiver
].reference_point
for linkId in link_ends_ids
]
np.savetxt(
output_folder + "link_end_names_" + filename_suffix + ".dat",
link_ends_names,
fmt="%s", # Format as string
delimiter="\n", # Each string on a new line
)
### ------------------------------------------------------------------------------------------
### DEFINE SET OF PARAMETERS TO BE ESTIMATED
### ------------------------------------------------------------------------------------------
# Define parameters to estimate
parameter_settings = parameters_setup.initial_states(
propagator_settings, bodies
)
# Define list of additional parameters
extra_parameters = [
parameters_setup.radiation_pressure_target_direction_scaling(
spacecraft_name, "Sun"
),
parameters_setup.radiation_pressure_target_perpendicular_direction_scaling(
spacecraft_name, "Sun"
),
parameters_setup.radiation_pressure_target_direction_scaling(
spacecraft_name, "Moon"
),
parameters_setup.radiation_pressure_target_perpendicular_direction_scaling(
spacecraft_name, "Moon"
),
]
# Include the estimation of the manoeuvres if any are detected during the arc of interest
if len(relevant_manoeuvres) > 0:
extra_parameters.append(
parameters_setup.quasi_impulsive_shots(spacecraft_name)
)
# Add additional parameters settings
parameter_settings += extra_parameters
# Create set of parameters to estimate
parameters_to_estimate = parameters_setup.create_parameter_set(
parameter_settings, bodies, propagator_settings
)
parameters.print_parameter_names(parameters_to_estimate)
print("pre-fit parameters values", parameters_to_estimate.parameter_vector)
### ------------------------------------------------------------------------------------------
### DEFINE ESTIMATION SETTINGS AND PERFORM THE FIT
### ------------------------------------------------------------------------------------------
# Create estimator
estimator = estimation_analysis.Estimator(
bodies,
parameters_to_estimate,
observation_model_settings,
propagator_settings,
)
# Define estimation settings
estimation_input = estimation.estimation_analysis.EstimationInput(
compressed_observations,
convergence_checker=estimation.estimation_analysis.estimation_convergence_checker(
2
),
)
estimation_input.define_estimation_settings(
reintegrate_equations_on_first_iteration=False,
reintegrate_variational_equations=False,
print_output_to_terminal=True,
save_state_history_per_iteration=True,
)
# Perform estimation
estimation_output = estimator.perform_estimation(estimation_input)
# Save pre- and post-fit residuals
np.savetxt(
output_folder + "prefit_residuals_" + filename_suffix + ".dat",
estimation_output.residual_history[:, 0],
delimiter=",",
)
np.savetxt(
output_folder + "postfit_residuals_" + filename_suffix + ".dat",
estimation_output.residual_history[:, -1],
delimiter=",",
)
# Retrieve the post-fit state history of GRAIL
estimated_state_history = estimation_output.simulation_results_per_iteration[
-1
].dynamics_results.state_history
# Print estimated parameters values
print("post-fit estimated parameters", parameters_to_estimate.parameter_vector)
# Compute the difference between GRAIL's post-fit state history as estimated in this example and its reference spice
# trajectory, in the RSW frame (radial, along-track, cross-track).
rsw_state_difference = get_rsw_state_difference(
estimated_state_history,
spacecraft_name,
spacecraft_central_body,
global_frame_orientation,
)
# Save RSW state difference w.r.t. spice trajectory
np.savetxt(
output_folder + "postfit_rsw_state_difference_" + filename_suffix + ".dat",
rsw_state_difference,
delimiter=",",
)
if __name__ == "__main__":
print("Start")
inputs = []
output_folder = "grail_estimation_output/"
if not os.path.isdir(output_folder):
os.mkdir(output_folder)
# Specify the number of parallel runs to use for this example
nb_parallel_runs = 7
# Define dates for the five arcs to be analysed in parallel (we only include dates for which an ODF file is available).
# Each parallel run will therefore parse a single day-long arc.
dates = [
datetime(2012, 4, 6),
datetime(2012, 4, 7),
datetime(2012, 4, 8),
datetime(2012, 4, 9),
datetime(2012, 4, 10),
datetime(2012, 4, 11),
datetime(2012, 4, 12),
]
# For each parallel run
for i in range(nb_parallel_runs):
# First retrieve the names of all the relevant kernels and data files necessary to cover the date of interest
(
clock_file,
grail_orientation_files,
tro_files,
ion_files,
manoeuvres_file,
antenna_files,
odf_files,
trajectory_files,
grail_frames_def_file,
moon_orientation_file,
lunar_frame_file,
) = get_grail_files("grail_kernels/", dates[i], dates[i])
print(dates[i])
print(manoeuvres_file)
# Construct a list of input arguments containing the arguments needed this specific run.
# These include the date of interest, along with the names of all relevant kernels and data files that should be loaded
inputs.append(
[
i,
dates[i],
odf_files,
clock_file,
grail_orientation_files,
tro_files,
ion_files,
manoeuvres_file,
antenna_files,
trajectory_files,
grail_frames_def_file,
moon_orientation_file,
lunar_frame_file,
output_folder,
]
)
# Run parallel GRAIL estimations from ODF data
print("---------------------------------------------")
print(
"The output of each parallel estimation is saved in a separate file named grail_odf_estimation_output_x.dat, "
"with x the index of the run (all output files are saved in " + output_folder
)
with mp.get_context("fork").Pool(nb_parallel_runs) as pool:
pool.map(run_odf_estimation, inputs)
all_prefit = []
all_times = []
all_link_ends = []
all_postfit = []
all_residuals_wrt_spice = []
# Load and plot the results of each parallel estimation
for i in range(nb_parallel_runs):
obs_times = np.loadtxt(output_folder + "observation_times_" + str(i) + ".dat")
link_ends_ids = np.loadtxt(output_folder + "link_end_ids_" + str(i) + ".dat")
residuals_wrt_spice = np.loadtxt(
output_folder + "residuals_wrt_spice_" + str(i) + ".dat"
)
prefit_residuals = np.loadtxt(
output_folder + "prefit_residuals_" + str(i) + ".dat"
)
postfit_residuals = np.loadtxt(
output_folder + "postfit_residuals_" + str(i) + ".dat"
)
difference_rsw_wrt_spice = np.loadtxt(
output_folder + "postfit_rsw_state_difference_" + str(i) + ".dat",
delimiter=",",
)
link_ends_names = np.loadtxt(
output_folder + "link_end_names_" + str(i) + ".dat", dtype=str
)
all_times.append(obs_times)
all_link_ends.append(link_ends_names)
all_prefit.append(prefit_residuals)
all_postfit.append(postfit_residuals)
start_date = time_representation.DateTime.from_python_datetime(dates[i]).to_epoch()
# Plot the results of the current estimation.
fig, axs = plt.subplots(2, 2, figsize=(10, 8))
# Plot residuals wrt reference spice trajectory
axs[0, 0].scatter(
(obs_times - start_date) / 3600, residuals_wrt_spice, c=link_ends_ids, s=10
)
axs[0, 0].grid()
axs[0, 0].set_ylim([-0.006, 0.006])
axs[0, 0].set_xlim([0, 24])
axs[0, 0].set_xlabel("Time [hours]")
axs[0, 0].set_ylabel("Residuals [Hz]")
axs[0, 0].set_title("Residuals w.r.t. SPICE")
# Plot pre-fit residuals
axs[0, 1].scatter(
(obs_times - start_date) / 3600, prefit_residuals, c=link_ends_ids, s=10
)
axs[0, 1].grid()
axs[0, 1].set_xlim([0, 24])
axs[0, 1].set_xlabel("Time [days]")
axs[0, 1].set_ylabel("Residuals [Hz]")
axs[0, 1].set_title("Pre-fit residuals")
# Plot post-fit residuals
axs[1, 0].scatter(
(obs_times - start_date) / 3600, postfit_residuals, c=link_ends_ids, s=10
)
axs[1, 0].grid()
axs[1, 0].set_ylim([-0.006, 0.006])
axs[1, 0].set_xlim([0, 24])
axs[1, 0].set_xlabel("Time [days]")
axs[1, 0].set_ylabel("Residuals [Hz]")
axs[1, 0].set_title("Post-fit residuals")
# Plot the difference between the reconstructed GRAIL trajectory and the reference spice kernel, in RSW frame
axs[1, 1].plot(
(difference_rsw_wrt_spice[:, 0] - start_date) / 3600,
difference_rsw_wrt_spice[:, 1],
label="radial",
)
axs[1, 1].plot(
(difference_rsw_wrt_spice[:, 0] - start_date) / 3600,
difference_rsw_wrt_spice[:, 2],
label="along-track",
)
axs[1, 1].plot(
(difference_rsw_wrt_spice[:, 0] - start_date) / 3600,
difference_rsw_wrt_spice[:, 3],
label="cross-track",
)
axs[1, 1].grid()
axs[1, 1].set_xlim([0, 24])
axs[1, 1].set_xlabel("Time [hours since start of the day]")
axs[1, 1].set_ylabel("Difference wrt spice [m]")
axs[1, 1].set_title("Position difference wrt spice")
axs[1, 1].legend()
fig.suptitle(
"Run"
+ str(i)
+ " : "
+ "GRAIL orbit estimation on "
+ dates[i].strftime("%m/%d/%Y")
)
fig.tight_layout()
plt.show()
Start
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120402_120408.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_06_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_097_0235smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
2012-04-06 00:00:00
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120402_120408.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_07_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
2012-04-07 00:00:00
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120402_120408.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_08_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_099_0407smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
2012-04-08 00:00:00
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_09_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_100_0540smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
2012-04-09 00:00:00
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_10_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_101_0235smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
2012-04-10 00:00:00
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_11_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_102_0358smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
2012-04-11 00:00:00
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_12_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_103_0145smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
2012-04-12 00:00:00
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
The output of each parallel estimation is saved in a separate file named grail_odf_estimation_output_x.dat, with x the index of the run (all output files are saved in grail_estimation_output/
input_indexinput_indexinput_indexinput_indexinput_indexinput_indexinput_index 42 0
1
653
Original observations: 21721
Original observations: 24464
Original observations: 26511
Compressed observations: 353
Compressed observations: 396
Compressed observations: 429
Original observations: 20058
Original observations: 30960
Compressed observations: 324
Compressed observations: 504
pre-fit parameters values [-2.03448161e+05 -3.54856534e+05 1.75118408e+06 7.49864760e+02
-1.45400285e+03 -2.02132179e+02 1.00000000e+00 1.00000000e+00
1.00000000e+00 1.00000000e+00]
pre-fit parameters values [-9.99075722e+04 -5.38201089e+05 1.71550446e+06 7.60220686e+02
-1.40733347e+03 -3.89133765e+02 1.00000000e+00 1.00000000e+00
1.00000000e+00 1.00000000e+00]
pre-fit parameters values [-6.38583141e+04 -5.85078427e+05 1.69999581e+06 7.57413971e+02
-1.39430541e+03 -4.44221179e+02 1.00000000e+00 1.00000000e+00
1.00000000e+00 1.00000000e+00]
pre-fit parameters values [-3.87573667e+04 -6.03925993e+05 1.69442683e+06 7.55873837e+02
-1.38702780e+03 -4.67992822e+02 1.00000000e+00 1.00000000e+00
1.00000000e+00 1.00000000e+00 0.00000000e+00 0.00000000e+00
0.00000000e+00]
Original observations: 50432
pre-fit parameters values [-3.78692950e+05 -1.50985957e+04 1.75676060e+06 6.93148979e+02
-1.49041573e+03 1.37529408e+02 1.00000000e+00 1.00000000e+00
1.00000000e+00 1.00000000e+00]
Compressed observations: 833
Original observations: 38550
Compressed observations: 632
pre-fit parameters values [ 7.66994911e+05 -1.01052672e+06 -1.25740973e+06 -3.20032853e+02
1.17090652e+03 -1.13202013e+03 1.00000000e+00 1.00000000e+00
1.00000000e+00 1.00000000e+00]
pre-fit parameters values [-7.03579057e+05 7.94783263e+05 1.45690149e+06 4.33292268e+02
-1.29788047e+03 9.12639504e+02 1.00000000e+00 1.00000000e+00
1.00000000e+00 1.00000000e+00 0.00000000e+00 0.00000000e+00
0.00000000e+00]
post-fit estimated parameters [-3.87616262e+04 -6.03927118e+05 1.69442632e+06 7.55873068e+02
-1.38702810e+03 -4.67992373e+02 1.45956066e+01 4.14323391e+00
2.68180424e+02 -1.51515538e+02 -1.34326457e-03 -7.05671711e-04
-3.68207033e-04]
post-fit estimated parameters [-2.03444045e+05 -3.54859704e+05 1.75118402e+06 7.49865806e+02
-1.45400183e+03 -2.02136064e+02 -7.62777418e-01 -3.78308487e-01
-2.90840568e+01 -2.11770985e+01]
post-fit estimated parameters [-6.38541952e+04 -5.85079515e+05 1.69999580e+06 7.57414197e+02
-1.39430436e+03 -4.44223593e+02 1.79976138e+00 1.04937295e+00
1.58444600e+01 -1.78891756e+01]
post-fit estimated parameters [ 7.66996604e+05 -1.01052673e+06 -1.25740946e+06 -3.20032773e+02
1.17090652e+03 -1.13202025e+03 -5.75518640e+00 -1.54980554e-01
-1.55626571e+02 1.19311795e+00]
post-fit estimated parameters [-3.78682272e+05 -1.51102683e+04 1.75676316e+06 6.93153505e+02
-1.49041501e+03 1.37516261e+02 -1.02945297e+01 -1.98296017e+00
-2.46636874e+02 -2.51168863e+01]
post-fit estimated parameters [-9.99018162e+04 -5.38203427e+05 1.71550410e+06 7.60221443e+02
-1.40733216e+03 -3.89137734e+02 -2.06158032e+00 -3.62126847e-01
-6.92509924e+01 -4.20298069e+01]
post-fit estimated parameters [-7.03580091e+05 7.94781653e+05 1.45690178e+06 4.33292431e+02
-1.29788125e+03 9.12638333e+02 4.13669710e+00 2.29457804e+00
7.08343879e+01 4.56850520e+00 3.57949086e-05 4.87330500e-05
-2.43142358e-04]
