GRAIL - Fitting various models of the GRAIL spacecraft’s dynamics to the reference spice trajectory#
Objectives#
Within this example, we fit various dynamical models of the GRAIL spacecraft to its reference SPICE trajectory. Unlike the ODF estimation example which uses real Doppler data, this script generates “ideal” position observables by sampling the SPICE ephemeris and fits a propagated orbit to these samples. The goal is to assess how well different dynamical models can replicate the “ground truth” trajectory provided by NASA’s navigation team. The script follows this methodology:
Ephemeris Sampling: Instead of loading real measurements, the script samples the reference SPICE ephemeris to generate ideal position observables over day-long arcs.
Dynamical Modelling (Setups): Four distinct setups are defined to test model fidelity:
Setup 0 (Simple): Uses a truncated lunar gravity field (10x10), cannonball radiation pressure for Sun/Moon, and Earth as the sole third-body perturber. Estimates initial state only.
Setup 1 (Complex): Uses a high-fidelity lunar gravity field (256x256), panelled radiation pressure models, and perturbations from Earth, Sun, Venus, Mars, Jupiter, and Saturn. Estimates initial state only.
Setup 2 (Complex + Coefficients): Same as Setup 1, but additionally estimates radiation pressure scale factors.
Setup 3 (Complex + Manoeuvres): Same as Setup 2, but additionally estimates manoeuvres if they are detected within the arc.
Estimation: Performing a least-squares fit to minimize the difference between the propagated state and the sampled SPICE ephemeris.

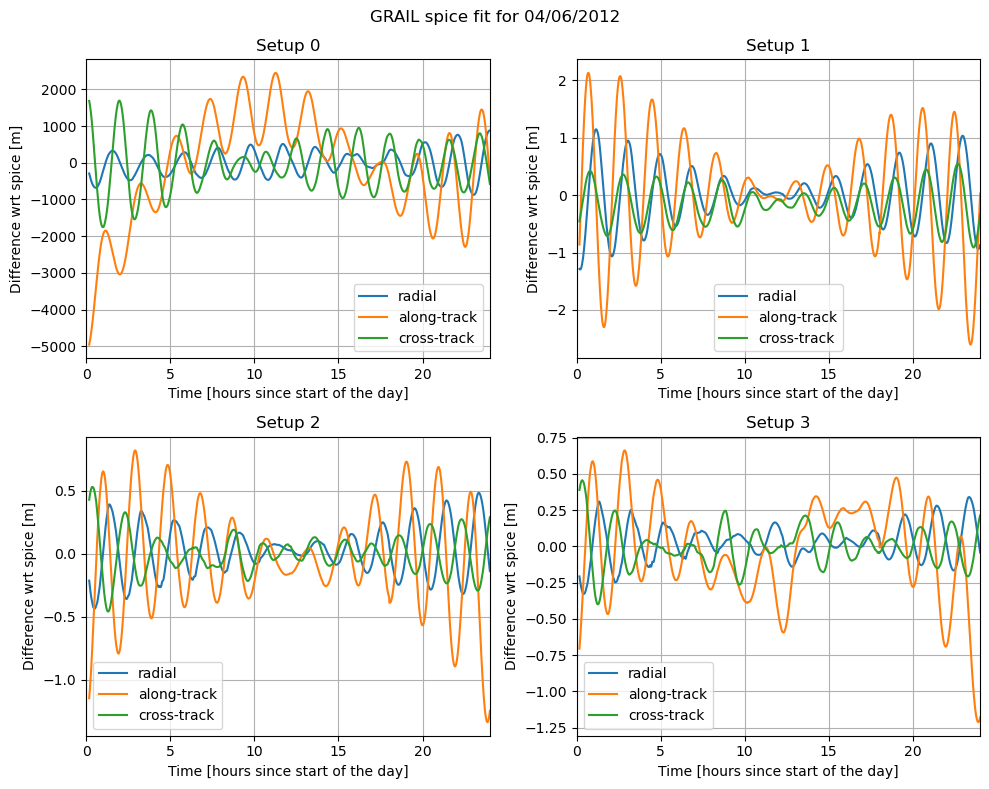

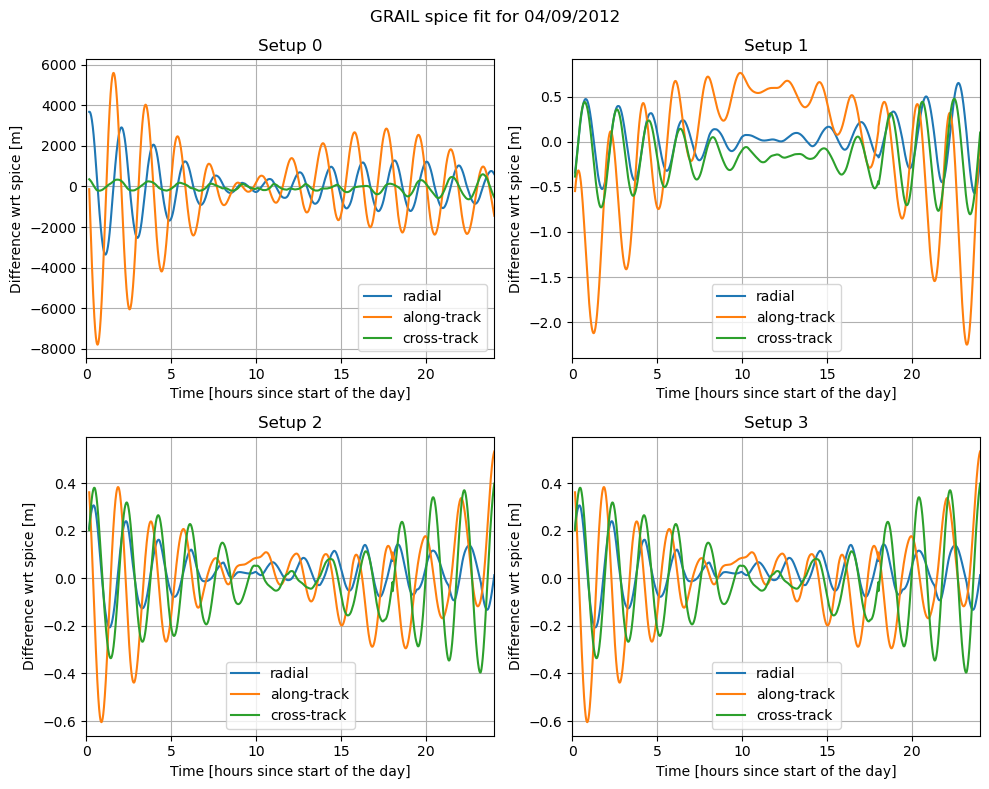

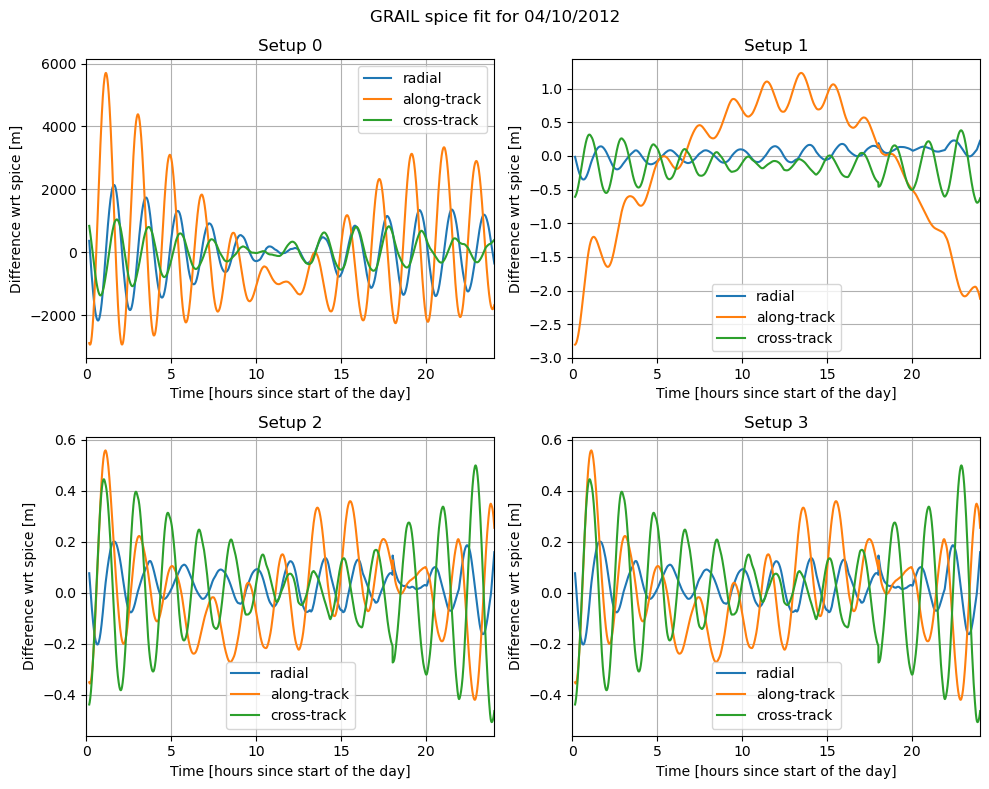

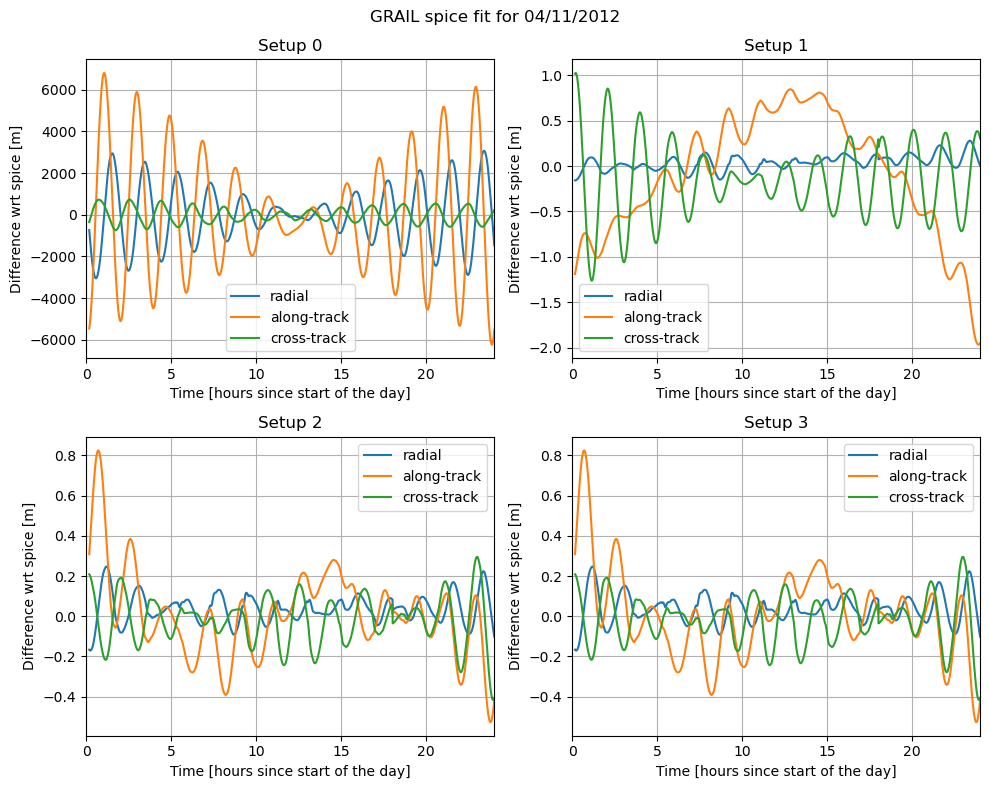

Validation: Computing the difference between the post-fit estimated trajectory and the reference SPICE trajectory in the RSW (Radial, Along-Track, Cross-Track) frame to quantify the accuracy of the dynamical model.
Important Remarks#
Tudatpy Version: Please ensure you are using Tudatpy v1.0 or above.
Data Download: Running the example automatically triggers the download of all required kernels and data files if they are not found locally (trajectory kernels, orientation kernels, etc.).
Parallel Execution: This example performs a high number of parallel operations (nb_setups * nb_dates), running 4 different setups over 5 different days (20 total runs). This is computationally intensive and may take significant time.
[1]:
# Load required standard modules
import multiprocessing as mp
import os
import numpy as np
from matplotlib import pyplot as plt
[2]:
# Load required tudatpy modules
from tudatpy.data import grail_mass_level_0_file_reader
from tudatpy.interface import spice
from tudatpy.astro import time_representation
from tudatpy import util
[3]:
from tudatpy.dynamics import environment_setup
from tudatpy.dynamics.environment_setup import radiation_pressure
from tudatpy.dynamics import propagation_setup, parameters_setup
from tudatpy.estimation import estimation_analysis
[5]:
# Import GRAIL examples functions
from grail_examples_functions import (
get_grail_files,
get_grail_panel_geometry,
get_rsw_state_difference,
)
The Main Function#
We pack the main residual analysis functionality into the run_spice_fit function.
This function tests various setups (both in terms of dynamical model and set of parameters to estimate) to fit GRAIL’s orbit to its reference spice trajectory, over arcs of one day. This is done by sampling the spice ephemeris and generating ideal “position” observables. We then fit GRAIL’s dynamical model to such observables, using different set of estimated parameters.
The “inputs” variable used as input argument is a list with eleven entries:
the index of the current run (the run_spice_fit function being run in parallel on several cores in this example)
the date for the day-long arc under consideration
the index of the setup to consider for the current run (defines both GRAIL’s dynamical model and the list of estimated parameters)
the clock file to be loaded
the list of orientation kernels to be loaded
the GRAIL manoeuvres file to be loaded
the list of GRAIL trajectory files to be loaded
the GRAIL reference frames file to be loaded
the lunar orientation kernel to be loaded
the lunar reference frame kernel to be loaded
the output files directory
[6]:
def run_spice_fit(inputs):
# Unpack various input arguments
input_index = inputs[0]
# Retrieve the current date as string
date_string = inputs[1].strftime("%m/%d/%Y").replace("/", "")
# Convert the datetime object defining the current date to a Tudat Time variable.
# A time buffer of 10 min is added to ensure that the GRAIL orientation kernel fully covers the time interval of interest,
# without interpolation errors in case the current kernel starts exactly on the day under consideration.
start_time = (
time_representation.DateTime.from_python_datetime(
inputs[1]
).to_epoch_time_object()
+ 600.0
)
end_time = start_time + 86400.0
# Retrieve index of the setup to consider (this defines both the model to be used to propagate GRAIL's dynamics
# and the list of estimated parameters in the fit)
index_setup = inputs[2]
# Retrieve lists of relevant kernels and input files to load (clock and orientation kernels for GRAIL, manoeuvres file,
# GRAIL trajectory files, GRAIL reference frames file, lunar orientation kernels, and lunar reference frame kernel)
clock_file = inputs[3]
grail_orientation_files = inputs[4]
manoeuvre_file = inputs[5]
trajectory_files = inputs[6]
grail_ref_frames_file = inputs[7]
lunar_orientation_file = inputs[8]
lunar_ref_frame_file = inputs[9]
# Retrieve output folder
output_folder = inputs[10]
# Redirect the outputs of this run to a file names grail_spice_fit_output_DATE_setup_x.dat, with x the setup index and
# 'DATE' the date of interest written as MMDDYYYYY
with util.redirect_std(
output_folder
+ "grail_spice_fit_output_"
+ date_string
+ "_setup_"
+ str(index_setup)
+ ".dat",
True,
True,
):
print("index_setup", index_setup)
print("date_string", date_string)
filename_suffix = date_string + "_setup_" + str(index_setup)
### ------------------------------------------------------------------------------------------
### LOAD ALL REQUESTED KERNELS AND FILES
### ------------------------------------------------------------------------------------------
# Load standard spice kernels
spice.load_standard_kernels()
# Load specific Moon kernels
spice.load_kernel(lunar_ref_frame_file)
spice.load_kernel(lunar_orientation_file)
# Load GRAIL frame definition file (useful for spacecraft-fixed frames definition)
spice.load_kernel(grail_ref_frames_file)
# Load GRAIL orientation kernels (over the entire relevant time period).
for orientation_file in grail_orientation_files:
spice.load_kernel(orientation_file)
# Load GRAIL clock file
spice.load_kernel(clock_file)
# Load GRAIL trajectory kernel
for trajectory_file in trajectory_files:
spice.load_kernel(trajectory_file)
### ------------------------------------------------------------------------------------------
### CREATE DYNAMICAL ENVIRONMENT
### ------------------------------------------------------------------------------------------
# Create default body settings for celestial bodies
bodies_to_create = [
"Earth",
"Sun",
"Mercury",
"Venus",
"Mars",
"Jupiter",
"Saturn",
"Moon",
]
global_frame_origin = "SSB"
global_frame_orientation = "J2000"
body_settings = environment_setup.get_default_body_settings_time_limited(
bodies_to_create,
start_time.to_float(),
end_time.to_float(),
global_frame_origin,
global_frame_orientation,
)
# Modify default rotation and gravity field settings for the Moon
body_settings.get(
"Moon"
).rotation_model_settings = environment_setup.rotation_model.spice(
global_frame_orientation, "MOON_PA_DE440", "MOON_PA_DE440"
)
body_settings.get(
"Moon"
).gravity_field_settings = (
environment_setup.gravity_field.predefined_spherical_harmonic(
environment_setup.gravity_field.gggrx1200, 500
)
)
body_settings.get(
"Moon"
).gravity_field_settings.associated_reference_frame = "MOON_PA_DE440"
# Define gravity field variations for the tides on the Moon
moon_gravity_field_variations = list()
moon_gravity_field_variations.append(
environment_setup.gravity_field_variation.solid_body_tide(
"Earth", 0.02405, 2
)
)
moon_gravity_field_variations.append(
environment_setup.gravity_field_variation.solid_body_tide("Sun", 0.02405, 2)
)
body_settings.get(
"Moon"
).gravity_field_variation_settings = moon_gravity_field_variations
body_settings.get("Moon").ephemeris_settings.frame_origin = "Earth"
# Add Moon radiation properties
moon_surface_radiosity_models = [
radiation_pressure.thermal_emission_angle_based_radiosity(
95.0, 385.0, 0.95, "Sun"
),
radiation_pressure.variable_albedo_surface_radiosity(
radiation_pressure.predefined_spherical_harmonic_surface_property_distribution(
radiation_pressure.albedo_dlam1
),
"Sun",
),
]
body_settings.get(
"Moon"
).radiation_source_settings = (
radiation_pressure.panelled_extended_radiation_source(
moon_surface_radiosity_models, [6, 12]
)
)
# Create empty settings for the GRAIL spacecraft
spacecraft_name = "GRAIL-A"
spacecraft_central_body = "Moon"
body_settings.add_empty_settings(spacecraft_name)
body_settings.get(spacecraft_name).constant_mass = 150
# Define translational ephemeris from SPICE
body_settings.get(
spacecraft_name
).ephemeris_settings = environment_setup.ephemeris.interpolated_spice(
start_time.to_float(),
end_time.to_float(),
10.0,
spacecraft_central_body,
global_frame_orientation,
)
# Define rotational ephemeris from SPICE
body_settings.get(
spacecraft_name
).rotation_model_settings = environment_setup.rotation_model.spice(
global_frame_orientation, spacecraft_name + "_SPACECRAFT", ""
)
# Define GRAIL panel geometry, which will be used for the panel radiation pressure model
body_settings.get(
spacecraft_name
).vehicle_shape_settings = get_grail_panel_geometry()
# Create environment
bodies = environment_setup.create_system_of_bodies(body_settings)
# Add radiation pressure target models for GRAIL (both cannonball and complete panel models)
occulting_bodies = dict()
occulting_bodies["Sun"] = ["Moon"]
environment_setup.add_radiation_pressure_target_model(
bodies,
spacecraft_name,
radiation_pressure.cannonball_radiation_target(5, 1.5, occulting_bodies),
)
environment_setup.add_radiation_pressure_target_model(
bodies,
spacecraft_name,
radiation_pressure.panelled_radiation_target(occulting_bodies),
)
### ------------------------------------------------------------------------------------------
### RETRIEVE GRAIL MANOEUVRES EPOCHS
### ------------------------------------------------------------------------------------------
# Load the times at which the spacecraft underwent a manoeuvre from GRAIL's manoeuvres file
manoeuvres_times = grail_mass_level_0_file_reader(manoeuvre_file)
# Store the manoeuvres epochs if they occur within the time interval under consideration
relevant_manoeuvres = []
for manoeuvre_time in manoeuvres_times:
if (
manoeuvre_time >= start_time.to_float()
and manoeuvre_time <= end_time.to_float()
):
print("manoeuvre detected")
relevant_manoeuvres.append(manoeuvre_time)
### ------------------------------------------------------------------------------------------
### DEFINE ACCELERATION MODELS
### ------------------------------------------------------------------------------------------
# Define two different lists of accelerations acting on GRAIL (a simplified dynamical model and a more complete one).
# The model actually used to propagate GRAIL's dynamics depends on the current setup index.
simple_accelerations_settings_spacecraft = dict(
Sun=[
propagation_setup.acceleration.radiation_pressure(
environment_setup.radiation_pressure.cannonball_target
)
],
Earth=[propagation_setup.acceleration.point_mass_gravity()],
Moon=[
propagation_setup.acceleration.spherical_harmonic_gravity(10, 10),
propagation_setup.acceleration.radiation_pressure(
environment_setup.radiation_pressure.cannonball_target
),
],
)
complete_accelerations_settings_spacecraft = dict(
Sun=[
propagation_setup.acceleration.radiation_pressure(
environment_setup.radiation_pressure.paneled_target
),
propagation_setup.acceleration.point_mass_gravity(),
],
Earth=[propagation_setup.acceleration.point_mass_gravity()],
Moon=[
propagation_setup.acceleration.spherical_harmonic_gravity(256, 256),
propagation_setup.acceleration.radiation_pressure(
environment_setup.radiation_pressure.cannonball_target
),
],
Mars=[propagation_setup.acceleration.point_mass_gravity()],
Venus=[propagation_setup.acceleration.point_mass_gravity()],
Jupiter=[propagation_setup.acceleration.point_mass_gravity()],
Saturn=[propagation_setup.acceleration.point_mass_gravity()],
)
# Add manoeuvres if necessary
if len(relevant_manoeuvres) > 0:
complete_accelerations_settings_spacecraft[spacecraft_name] = [
propagation_setup.acceleration.quasi_impulsive_shots_acceleration(
relevant_manoeuvres, [np.zeros((3, 1))], 3600.0, 60.0
)
]
# Create accelerations settings (for index_setup = 0, use the reduced accelerations set and use the complete set otherwise)
if index_setup == 0:
acceleration_settings = {
spacecraft_name: simple_accelerations_settings_spacecraft
}
else:
acceleration_settings = {
spacecraft_name: complete_accelerations_settings_spacecraft
}
# Create acceleration models from settings
bodies_to_propagate = [spacecraft_name]
central_bodies = [spacecraft_central_body]
acceleration_models = propagation_setup.create_acceleration_models(
bodies, acceleration_settings, bodies_to_propagate, central_bodies
)
# Define integrator settings
integration_step = 30.0
integrator_settings = propagation_setup.integrator.runge_kutta_fixed_step_size(
time_representation.Time(0, integration_step),
propagation_setup.integrator.rkf_78,
)
### ------------------------------------------------------------------------------------------
### DEFINE SET OF PARAMETERS TO BE ESTIMATED
### ------------------------------------------------------------------------------------------
# For setups 0 and 1, only estimate GRAIL's initial state
extra_parameters = []
# For index_setup >= 2, define list of additional parameters
# Add radiation pressure scale factors
if index_setup >= 2:
extra_parameters.append(
parameters_setup.radiation_pressure_target_direction_scaling(
spacecraft_name, "Sun"
)
)
extra_parameters.append(
parameters_setup.radiation_pressure_target_perpendicular_direction_scaling(
spacecraft_name, "Sun"
)
)
extra_parameters.append(
parameters_setup.radiation_pressure_target_direction_scaling(
spacecraft_name, "Moon"
)
)
extra_parameters.append(
parameters_setup.radiation_pressure_target_perpendicular_direction_scaling(
spacecraft_name, "Moon"
)
)
# Add the estimation of the manoeuvre(s) (if any are detected for the current date)
if index_setup == 3:
if len(relevant_manoeuvres) > 0:
extra_parameters.append(
parameters_setup.quasi_impulsive_shots(spacecraft_name)
)
# Fit the propagated GRAIL trajectory to its reference spice trajectory. This function creates ideal position "observables" by directly
# sampling the GRAIL spice trajectory. GRAIL's trajectory propagated with the dynamical model defined above is then fitted to these
# spice observables, using the current set of estimated paramaters.
estimation_output = estimation_analysis.create_best_fit_to_ephemeris(
bodies,
acceleration_models,
bodies_to_propagate,
central_bodies,
integrator_settings,
start_time,
end_time, # initial_time, final_time,
time_representation.Time(0, 60.0),
extra_parameters,
results_print_frequency=3600.0 / integration_step,
)
# Retrieve GRAIL's post-fit estimated trajectory
estimated_state_history = estimation_output.simulation_results_per_iteration[
-1
].dynamics_results.state_history
# Compute the difference between GRAIL's post-fit state history and its reference spice trajectory, in the RSW frame
# (radial, along-track, cross-track).
rsw_state_difference = get_rsw_state_difference(
estimated_state_history,
spacecraft_name,
spacecraft_central_body,
global_frame_orientation,
)
# Save RSW state difference w.r.t. spice trajectory
np.savetxt(
output_folder
+ "fit_spice_rsw_state_difference_"
+ filename_suffix
+ ".dat",
rsw_state_difference,
delimiter=",",
)
# Estimated parameters
print("estimated parameters", estimation_output.parameter_history[:, -1])
[7]:
if __name__ == "__main__":
print("Start")
inputs = []
output_folder = "grail_parallel_outputs/"
if not os.path.isdir(output_folder):
os.mkdir(output_folder)
# Define dates for the five analyses to be run in parallel (we use the same dates as in the grail_odf_estimation.py example).
dates = [
datetime(2012, 4, 6),
datetime(2012, 4, 9),
datetime(2012, 4, 10),
datetime(2012, 4, 11),
datetime(2012, 4, 12),
]
nb_dates = len(dates)
# Specify the number of different setups to try when fitting GRAIL's dynamics to the reference spice trajectory.
# In this example, "setup" refers to the combination of i) GRAIL's dynamical model and ii) the set of estimated parameters used
# to fit the spice trajectory. Two different dynamical models are used to propagate GRAIL's dynamics:
# model A: spherical harmonics model truncated at degree/order = 10/10 for the Moon, cannonball radiation pressure for both
# the Sun and the Moon, third-body perturbation from the Earth only
# model B: spherical harmonics model up to degree/order = 256/256 for the Moon, radiation pressure: cannonball model for the Sun
# and complete panel model for the Moon, third-body perturbations from Earth, Sun, Venus, Mars, Jupiter, and Saturn.
nb_setups = 4
# The six different setups are defined as follows:
# setup 0: model A + estimated parameters: GRAIL's initial state
# setup 1: model B + estimated parameters: GRAIL's initial state
# setup 2: model B + estimated parameters: GRAIL's initial state + radiation pressure scale factors
# setup 3: model B + estimated parameters: GRAIL's initial state + radiation pressure scale factors + manoeuvres (if any)
# Define the number of parallel runs to use for this example
nb_parallel_runs = nb_setups * nb_dates
# For each parallel run
for i in range(nb_parallel_runs):
# Retrieve the indices of the current date and current setup (dynamical model + estimated parameters) for this run
index_setup = i // nb_dates
index_date = i % nb_dates
print("index_setup", index_setup)
print("index_date", index_date)
# First retrieve the names of all the relevant kernels and data files necessary to cover the date of interest
(
clock_file,
grail_orientation_files,
tro_files,
ion_files,
manoeuvres_file,
antenna_files,
odf_files,
trajectory_files,
grail_frames_def_file,
moon_orientation_file,
lunar_frame_file,
) = get_grail_files("grail_kernels/", dates[index_date], dates[index_date])
# Construct a list of input arguments containing the arguments needed this specific parallel run.
# These include the start and end dates, along with the names of all relevant kernels and data files that should be loaded
inputs.append(
[
i,
dates[index_date],
index_setup,
clock_file,
grail_orientation_files,
manoeuvres_file,
trajectory_files,
grail_frames_def_file,
moon_orientation_file,
lunar_frame_file,
output_folder,
]
)
# Run parallel GRAIL fit to spice
print("---------------------------------------------")
print(
"The output of each parallel fit to spice is saved in a separate file named grail_spice_fit_output_DATE_setup_x.dat, "
"with x the index of the current setup and DATE the date of interest written as MMDDYYYYY (all output files are saved in "
+ output_folder
)
with mp.get_context("fork").Pool(nb_parallel_runs) as pool:
pool.map(run_spice_fit, inputs)
# Load and plot the results of each fit to SPICE
for index_date in range(nb_dates):
# Retrieve start of the current date in seconds
start_date = time_representation.DateTime.from_python_datetime(
dates[index_date]
).to_epoch()
# Retrieve string corresponding to the current date
date_string = dates[index_date].strftime("%m/%d/%Y").replace("/", "")
# Plot the results of the fit for the current date
nb_subplot_cols = int(np.ceil(nb_setups / 2))
fig, axs = plt.subplots(2, nb_subplot_cols, figsize=(10, 8))
# Parse results for all setups
for index_setup in range(nb_setups):
# Retrieve post-fit difference wrt reference SPICE trajectory
difference_rsw_wrt_spice = np.loadtxt(
output_folder
+ "fit_spice_rsw_state_difference_"
+ date_string
+ "_setup_"
+ str(index_setup)
+ ".dat",
delimiter=",",
)
# Plot the difference between the post-fit GRAIL trajectory and the reference spice kernel, in RSW frame
row = index_setup // nb_subplot_cols
col = index_setup % nb_subplot_cols
axs[row, col].plot(
(difference_rsw_wrt_spice[:, 0] - start_date) / 3600,
difference_rsw_wrt_spice[:, 1],
label="radial",
)
axs[row, col].plot(
(difference_rsw_wrt_spice[:, 0] - start_date) / 3600,
difference_rsw_wrt_spice[:, 2],
label="along-track",
)
axs[row, col].plot(
(difference_rsw_wrt_spice[:, 0] - start_date) / 3600,
difference_rsw_wrt_spice[:, 3],
label="cross-track",
)
axs[row, col].grid()
axs[row, col].set_xlim([0, 24])
axs[row, col].set_xlabel("Time [hours since start of the day]")
axs[row, col].set_ylabel("Difference wrt spice [m]")
axs[row, col].set_title("Setup " + str(index_setup))
axs[row, col].legend()
fig.suptitle("GRAIL spice fit for " + dates[index_date].strftime("%m/%d/%Y"))
fig.tight_layout()
plt.show()
Start
index_setup 0
index_date 0
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120402_120408.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_06_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_097_0235smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 0
index_date 1
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_09_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_100_0540smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 0
index_date 2
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_10_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_101_0235smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 0
index_date 3
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_11_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_102_0358smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 0
index_date 4
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_12_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_103_0145smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 1
index_date 0
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120402_120408.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_06_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_097_0235smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 1
index_date 1
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_09_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_100_0540smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 1
index_date 2
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_10_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_101_0235smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 1
index_date 3
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_11_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_102_0358smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 1
index_date 4
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_12_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_103_0145smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 2
index_date 0
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120402_120408.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_06_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_097_0235smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 2
index_date 1
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_09_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_100_0540smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 2
index_date 2
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_10_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_101_0235smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 2
index_date 3
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_11_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_102_0358smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 2
index_date 4
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_12_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_103_0145smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 3
index_date 0
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120402_120408.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_06_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_097_0235smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 3
index_date 1
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_09_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_100_0540smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 3
index_date 2
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_10_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_101_0235smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 3
index_date 3
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_11_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_102_0358smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
index_setup 3
index_date 4
---------------------------------------------
Download GRAIL clock file
relevant clock files
grail_kernels/gra_sclkscet_00014.tsc
---------------------------------------------
Download GRAIL orientation kernels
size_time_format 6
size_interval_format 13
nb existing files 6
dates_without_file []
relevant orientation files
grail_kernels/gra_rec_120409_120415.bc
---------------------------------------------
Download GRAIL tropospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant tropospheric corrections files
grail_kernels/grxlugf2012_092_2012_122.tro
---------------------------------------------
Download GRAIL ionospheric corrections files
size_time_format 8
size_interval_format 17
nb existing files 1
dates_without_file []
relevant ionospheric corrections files
grail_kernels/gralugf2012_092_2012_122.ion
---------------------------------------------
Download GRAIL manoeuvres file
relevant manoeuvres files
grail_kernels/mas00_2012_04_06_a_04.asc
---------------------------------------------
Download antenna switch files
nb existing files 30
relevant antenna files
grail_kernels/vgs1b_2012_04_12_a_04.asc
---------------------------------------------
Download GRAIL ODF files
nb existing files 19
relevant odf files
grail_kernels/gralugf2012_103_0145smmmv1.odf
---------------------------------------------
Download GRAIL trajectory file
relevant trajectory files
grail_kernels/grail_120301_120529_sci_v02.bsp
---------------------------------------------
Download GRAIL frames definition file
relevant GRAIL frames definition file
grail_kernels/grail_v07.tf
---------------------------------------------
Download Moon orientation kernel
relevant Moon orientation file
grail_kernels/moon_pa_de440_200625.bpc
---------------------------------------------
Download lunar reference frame kernel
relevant lunar reference frame file
grail_kernels/moon_de440_250416.tf
---------------------------------------------
The output of each parallel fit to spice is saved in a separate file named grail_spice_fit_output_DATE_setup_x.dat, with x the index of the current setup and DATE the date of interest written as MMDDYYYYY (all output files are saved in grail_parallel_outputs/
index_setupindex_setup 0index_setupindex_setupindex_setupindex_setupindex_setup0index_setupindex_setupindex_setupindex_setupindex_setupindex_setupindex_setup
index_setup index_setupdate_string date_string 0 1 index_setup index_setup22230412201211040620121
index_setup3
21
2
0date_stringdate_string
index_setupdate_string
date_string
date_string
date_string
date_string date_stringdate_string 3date_string date_stringdate_string041020120411201204062012date_string04112012
3304122012
04102012
0
041020120412201204062012
0409201204092012date_string04112012 date_string04092012 04062012
date_string
04122012date_stringdate_string
04112012 04102012
04092012
manoeuvre detectedmanoeuvre detectedmanoeuvre detectedmanoeuvre detectedmanoeuvre detectedmanoeuvre detectedmanoeuvre detected
manoeuvre detected
estimated parameters [ 1.61632384e+05 -9.90836929e+05 1.48515178e+06 7.62457729e+02
-1.17500778e+03 -8.78950849e+02]
estimated parameters [ 3.79338095e+05 -1.30532246e+06 1.18182789e+06 6.90641257e+02
-8.87488950e+02 -1.20150146e+03]
estimated parameters [-8.30908770e+05 1.41078290e+06 7.14386007e+05 3.57708859e+01
-7.25664938e+02 1.49226944e+03]
estimated parameters [ 3.20088413e+05 7.84930782e+04 -1.75845935e+06 -7.06255201e+02
1.49786688e+03 -5.06067259e+01]
estimated parameters [ 5.82844512e+05 -1.52532178e+06 7.66886320e+05 5.38327682e+02
-5.31403382e+02 -1.45878282e+03]
estimated parameters [ 5.81480904e+05 -1.52491456e+06 7.69377053e+05 5.38433907e+02
-5.32274672e+02 -1.45815545e+03 4.97544115e-01 1.50273625e-01
-2.05251603e+00 -3.04842799e+00 -4.68679847e-04 -3.13215980e-04
4.19028053e-05]
estimated parameters [ 3.18208976e+05 8.36092986e+04 -1.75932176e+06 -7.06982128e+02
1.49682850e+03 -4.84590362e+01]
estimated parameters [ 3.78305125e+05 -1.30287994e+06 1.17924641e+06 6.92205409e+02
-8.89064832e+02 -1.20409962e+03 5.99956010e-01 2.74795937e-01
1.76089896e+00 -3.78669776e+00]
estimated parameters [-8.31414126e+05 1.40886579e+06 7.16680633e+05 3.68723346e+01
-7.25756697e+02 1.49253064e+03 5.30663183e-01 -1.51721281e-02
9.79693303e-01 2.07848794e+00]
estimated parameters [ 3.18207621e+05 8.36103086e+04 -1.75932194e+06 -7.06982529e+02
1.49682840e+03 -4.84576611e+01 6.97842413e-01 1.95171901e-01
8.45785309e-01 -1.00139383e+01]
estimated parameters [ 3.18207621e+05 8.36103086e+04 -1.75932194e+06 -7.06982529e+02
1.49682840e+03 -4.84576611e+01 6.97842413e-01 1.95171901e-01
8.45785309e-01 -1.00139383e+01]
estimated parameters [ 1.62459613e+05 -9.95257629e+05 1.48246411e+06 7.62486656e+02
-1.17227979e+03 -8.82030891e+02 6.56694563e-01 7.53829287e-01
4.79720989e-01 -7.67533410e+00 2.46144371e-04 1.55424578e-04
-1.09404203e-04]
estimated parameters [ 5.81480181e+05 -1.52491467e+06 7.69377747e+05 5.38434223e+02
-5.32275198e+02 -1.45815494e+03]
estimated parameters [-8.31414294e+05 1.40886673e+06 7.16678367e+05 3.68713203e+01
-7.25754925e+02 1.49253156e+03]
estimated parameters [ 1.62458699e+05 -9.95257285e+05 1.48246314e+06 7.62487333e+02
-1.17228051e+03 -8.82031180e+02]
estimated parameters [ 1.62459444e+05 -9.95257296e+05 1.48246435e+06 7.62486745e+02
-1.17227992e+03 -8.82030639e+02 6.29110182e-01 8.15337490e-01
8.10547926e-03 -7.60655667e+00]
estimated parameters [ 5.81480987e+05 -1.52491504e+06 7.69376439e+05 5.38433558e+02
-5.32274195e+02 -1.45815559e+03 5.78642467e-01 3.74512547e-01
-1.78611383e+00 -2.89352326e+00]
estimated parameters [ 3.78304110e+05 -1.30287931e+06 1.17924660e+06 6.92206065e+02
-8.89065768e+02 -1.20409920e+03]
estimated parameters [ 3.78305125e+05 -1.30287994e+06 1.17924641e+06 6.92205409e+02
-8.89064832e+02 -1.20409962e+03 5.99956010e-01 2.74795937e-01
1.76089896e+00 -3.78669776e+00]
estimated parameters [-8.31414126e+05 1.40886579e+06 7.16680633e+05 3.68723346e+01
-7.25756697e+02 1.49253064e+03 5.30663183e-01 -1.51721281e-02
9.79693303e-01 2.07848794e+00]
